Products Application:
Single hook electric cable hoist, monorails, single speed electric hoist or electric single speed hoist crane,
and used for the industrial remote control which are under 6 connection.
Brief Introduction:
Transmitter: size:164*75*46mm weight: 350g
Receiver: size:185*85*85mm weight: 550g
Specifications:
Control distance: up to 100m
Unique code: over 4.3billon unique ID codes .
Temperature: -35°C___+80°C
Enclosure protection class: IP65
Transmitter power: DC3v
Receiver power: AC 380v/ 36v/220V or DC12V/24V
Output capacity: Full sealed relay output with 5 amperes

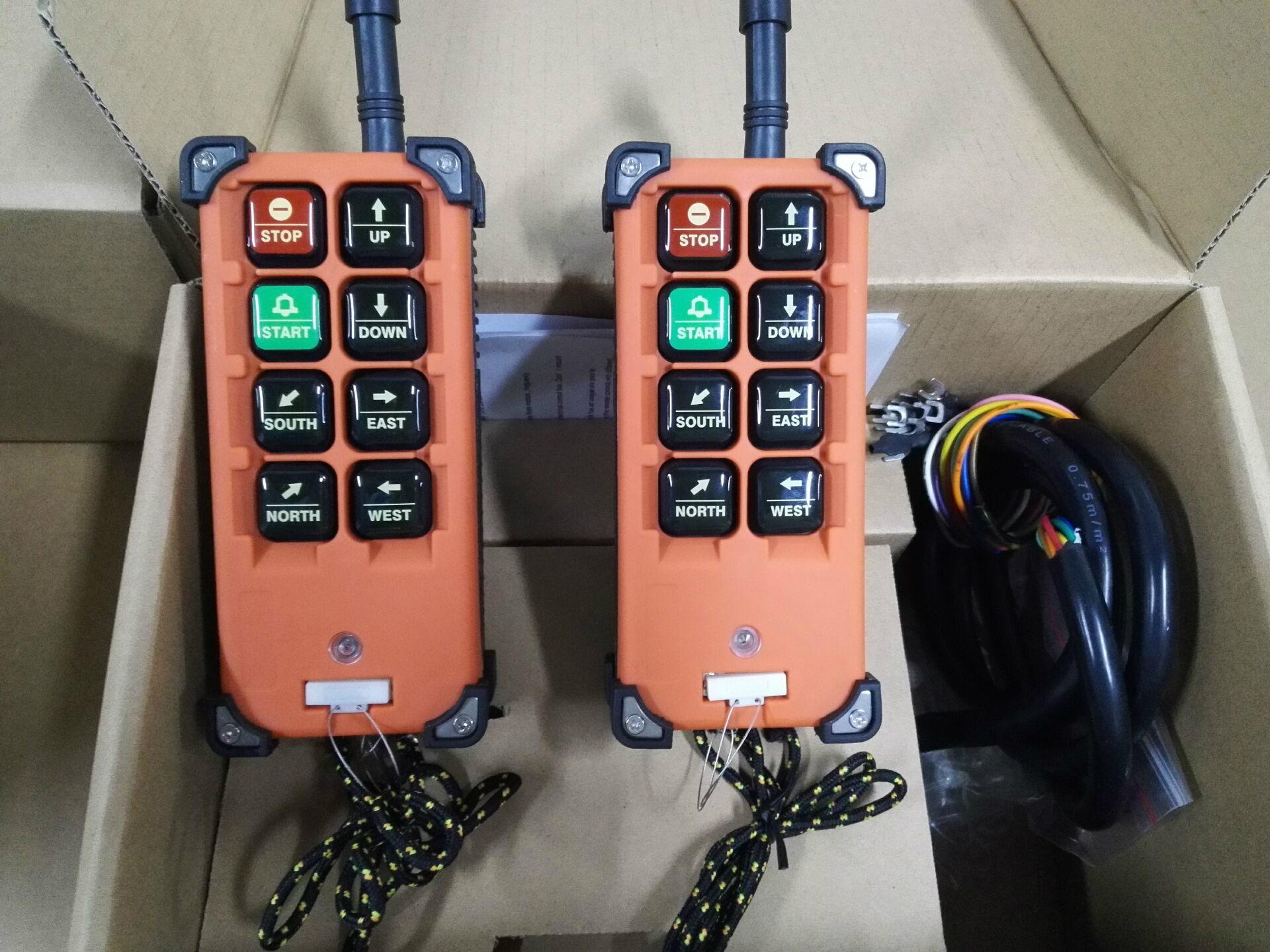

Standard configuration:
One transmitter;
One receiver;
One 1m cable connect with receiver;
One operation and maintain manual.
Products Features:
* 8 push buttons with 7 single-speed buttons and 1 stop buttons.
* Control points up to 6.
* With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
* With the Rotate key switch to guarantee the safety.
* Set the internal functions by computer interface.
* Up/down, east/west, south/ north push button can be set mutual inhibition or not.
* Spare 1 key can be set start, speed up, jump strokes, ordinary etc.
SPECIFICATION:
|
Application
|
Hoist, winches, lifts, doors and other industrial machine.
|
|
Frequency
|
310.0325~331.165Mhz
|
|
Frequency generation:
|
Crystal (plug in)
|
|
Channel
|
80
|
|
Channel Spacing
|
0.2675MHz
|
|
Control motions
|
6
|
|
Control distance
|
Up to 100m
|
|
Certificates
|
CE, FCC, ISO9001:2008
|
|
Number of push button
|
6 Single speed push button +1 start+1 stop
|
|
Unique code
|
Over 4.3billon unique ID codes .
|
|
Working temperature
|
-35°C ~ +80°C
|
|
Enclosure protection class
|
IP65
|
|
Transmitter power
|
AA-size batteries
|
|
Receiver power
|
AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V
|
|
Output capacity
|
Full sealed relay output with 5 amperes
|
|
Warranty
|
1 year
|
|
Material
|
glass fiber
|
